GRP Mini Mesh Grating
Our GRP Mini Mesh grating is a specially designed and moulded non-slip composite floor solution, constructed from the highest quality fibreglass making it chemical, rust, and corrosion resistant, and lightweight, whilst also offering longevity and durability. With limited tooling and installation costs, we can offer a vast range of standard length and width sizes, plus our in-house cutting service means we can offer bespoke sizes for that perfect fit.

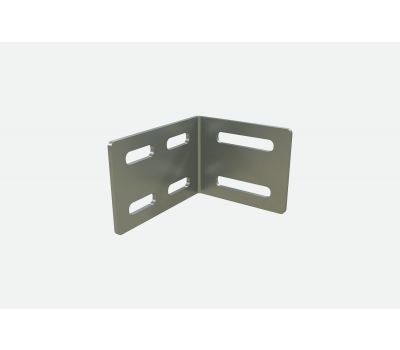

Optional clips are available to purchase if required.
Optional clips are available to purchase if required.
Slip resistant 3
Excellent slip resistance to level 3
Wear resistant 3
Excellent wear resistance to level 3, suitable for heavy footfall
Chemical resistant
Resistant for chemicals and oils
Cut to size
Mat can be cut to bespoke sizes
Disability friendly
Suitable for wheelchairs
Dry area
Suitable for use in dry areas
Wet area
Suitable for use in wet environments
Oily and greasy area
Suitable for use in oily and greasy areas
Heavy area
Suitable for use in heavy duty areas
Wheeled area
Suitable for trolleys and wheeled trucks
Flame retardant
Suitable for use in welding areas
Impact resistant
Able to resist sudden force or shock
Non-conductive (Electrical)
Suitable for use in electrical areas
Non-conductive (HV Electrical)
Suitable for use in high voltage electrical areas
UV resistant
Resistant to UV rays
Features
- Moulded non-slip composite floor grating
- Constructed from the highest quality fibreglass making it lightweight, chemical, rust, and corrosion resistant, ensuring longevity and durability
- Cost-effective alternative to traditional materials like mild steel, stainless steel, aluminium, or wood
- Limited tooling and installation costs
- Standard and bespoke sizes available with in-house cutting service
- Material: GRP - Glass reinforced polyester with a resin coated gritted surface
- Overall thickness 30mm
- Fixing clips and clamps available to purchase separately
- Please note, cutting tolerance +/- 5mm
Technical Specification
Slip resistant
Excellent slip resistance to level 3
Wear resistant
Excellent wear resistance to level 3, suitable for heavy footfall
Chemical resistant
Yes
Cut to size
Yes
Disability friendly
Yes, the low profile makes it suitable for wheelchair users
Dry area
Yes
Wet area
Yes
Oily and greasy area
Yes
Heavy area
Yes
Wheeled area
Yes
Environment
Suitable for indoor and outdoor use
Flame retardant
Yes
Impact resistant
Yes
Non-conductive (Electrical)
Yes
Non-conductive (HV Electrical)
Yes
Product testing
- Slip resistance
- Tested to BS7976.2 - PTV ‘Extremely Low’ for wet and dry conditions, PTV ‘Low’ for oily and greasy conditions
- Coefficient of Friction (CoF): Dry 72; Wet 69 and Oil 56
- Fire certificate
- Standard ISO Resin - BS 476 Part 7 Class 2
- ASTM-E84 Flame Spread 25, Smoke Density 325
- Load Certificate
- BS EN 124 – Class A15
- UV Certificate
- UV Weather ISO 4892-2 Xenan Arc 5000hrs
Sustainability
- REACH (Registration, Evaluation, Authorisation and Restrictions of Chemicals)
Temperature resistance
-50°C to +110°C
UV resistant
Yes
Cleaning
Using a stiff brush will normally be sufficient to remove everyday dirt and debris. For more stubborn dirt, wash with warm water and a mild detergent, or a pressure washer on a low-pressure setting can also be used
Applications
Perfect solution for platforms, walkways, pontoons, flooring, ramps and covers for industrial or construction sites, chemical and shipping industries as well as offshore oil rigs.
Variants and Sizes
Code | Description | Weight (kgs) |
|---|---|---|
| GR4913-30GY | GRP Mini Mesh Grating 4038 x 1262 x 30/19/19mm Sq Grit Top - Grey | 95 |
