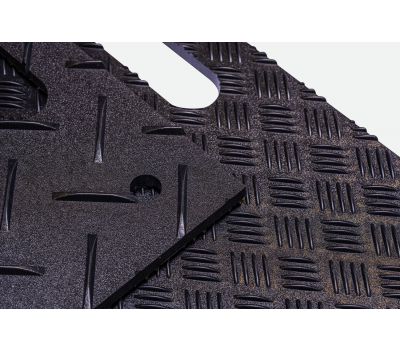

GroundTrak


Slip resistant 3
Excellent slip resistance to level 3

Wear resistant 3
Excellent wear resistance to level 3, suitable for heavy footfall

Chemical resistant
Resistant for chemicals and oils

Connectable
Mats are connectable to create any shape or size

Cut to size
Product can be cut to bespoke sizes

Dry area
Suitable for use in dry areas

Wet area
Suitable for use in wet environments

Heavy area
Suitable for use in heavy duty areas

Wheeled area
Suitable for trolleys and wheeled trucks

Impact resistant
Able to resist sudden force or shock

20t
Supports loads up to 20 tonnes
Features
- Robust and reliable temporary ground protection
- Raised square surface pattern provides fantastic traction and dirt removal
- Compact design allows for easy portability, set up, and relocation
- Avoids health & safety issues caused by poor ground conditions
- Helps to reduce noise
- Supports up to 20 tonnes
- Material: 100% recycled PVC
- Overall height: 22mm
Technical Specification
- Anti-slip rating: R10 (EU standard: DIN 51130:2010)
- Fire testing: B rating of classification of reaction to fire performance (Testing method in accordance to EN 13501-1:2018)
- Water absorption: 0.51% (PN-EN ISO 62:2008)
- Modulus of tensile stiffness: 100MPa (PN-EN ISO 527-1:2020:01, PN-EN ISO 527-2:2012)
- Tensile strength: 2.9MPa (PN-EN ISO 527-1:2020:01, PN-EN ISO 527-2:2012)
- Deformation at break point: 10.3% (PN-EN ISO 527-1:2020:01, PN-EN ISO 527-2:2012)
- Charpy impact strength: 6.89kJ/m2 (PN-EN ISO 179-1:2010)
- Ball indentation hardness: 48.4MPa (PN-EN ISO 2039-1:2004)
- Hardness shore A: 86.3°Sh (PN-EN ISO 868:2005)
- Ball press hardness: 48.4MPa (PN-EN ISO 2039-1:2004)
- Electrical properties
- Insulation resistance: 2.55×1013Ω/cm (PN-EN 62631-3-1:2016:10 IEC 60093:1980)
- Surface resistance: 7.14×1013Ω/cm (PN-EN 62631-3-2:2016:04 IEC 60093:1980)
- Dielectric strength: 8.11kV/mm (PN-EN 60243-1:2013-12)
Applications
Perfect for construction sites, outdoor markets and trade shows, temporary parking solutions, outdoor recreation and sports events, emergency access routes, outdoor weddings and special events, camping, and outdoor stages. Please note, the ground beneath the matting must be structurally sound and free from significant depressions, such as potholes, as these can cause the matting to crack or become damaged.
Variants and Sizes
Code | Description | Thickness | Weight (kgs) | Colour |
---|---|---|---|---|
GP3248BL | GroundTrak Mat Black 800mm x 1200mm x 22mm | 20.5 | Charcoal |
