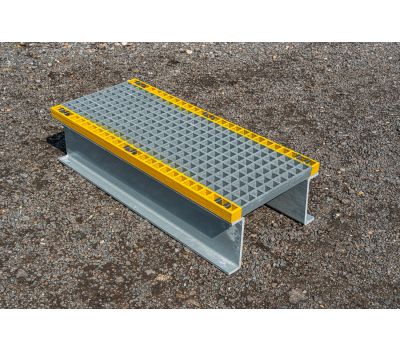

GRP Grating

Our GRP Grating is a specially designed and moulded non-slip composite floor solution, constructed from the highest quality fibreglass making it lightweight and also chemical, rust, and corrosion resistant whilst offering longevity and durability. With limited tooling and installation costs, we can offer a vast range of standard length and width sizes, plus our in-house cutting service means we can offer bespoke sizes for that perfect fit.

Available in 25mm, 38mm and 50mm thickness and an array of colours.

Optional clips are available to purchase if required.

Slip resistant 3

Excellent slip resistance to level 3

Wear resistant 3

Excellent wear resistance to level 3, suitable for heavy footfall

Chemical resistant

Resistant for chemicals and oils

Cut to size

Mat can be cut to bespoke sizes

Disability friendly

Suitable for wheelchairs

Dry area

Suitable for use in dry areas

Wet area

Suitable for use in wet environments

Oily and greasy area

Suitable for use in oily and greasy areas

Heavy area

Suitable for use in heavy duty areas

Wheeled area

Suitable for trolleys and wheeled trucks

Flame retardant

Suitable for use in welding areas

Impact resistant

Able to resist sudden force or shock

Non-conductive (Electrical)

Suitable for use in electrical areas

Non-conductive (HV Electrical)

Suitable for use in high voltage electrical areas

UV resistant

Resistant to UV rays

Features

  • Moulded non-slip composite floor grating
  • Constructed from the highest quality fibreglass making it lightweight, chemical, rust, and corrosion resistant ensuring longevity and durability
  • Cost-effective alternative to traditional materials like mild steel, stainless steel, aluminium, or wood
  • Limited tooling and installation costs
  • Standard and bespoke sizes available with in-house cutting service
  • Material: GRP - Glass reinforced polyester with a resin coated gritted surface
  • Available in 25mm, 38mm and 50mm thickness
  • Fixing clips and clamps available to purchase separately
  • Please note, cutting tolerance +/- 5mm

Technical Specification

Slip resistant
Excellent slip resistance to level 3
Wear resistant
Excellent wear resistance to level 3, suitable for heavy footfall
Chemical resistant
Yes
Cut to size
Yes
Disability friendly
Yes, the low profile makes it suitable for wheelchair users
Dry area
Yes
Wet area
Yes
Oily and greasy area
Yes
Heavy area
Yes
Wheeled area
Yes
Environment
Suitable for indoor and outdoor use
Flame retardant
Yes
Impact resistant
Yes
Non-conductive (Electrical)
Yes
Non-conductive (HV Electrical)
Yes
Product testing
  • Slip resistance
    • Tested to BS7976.2 - PTV ‘Extremely Low’ for wet and dry conditions, PTV ‘Low’ for oily and greasy conditions
    • Coefficient of Friction (CoF): Dry 72; Wet 68 and Oil 63
  • Fire certificate
    • Standard ISO Resin - BS 476 Part 7 Class 2
    • ASTM-E84 Flame Spread 25, Smoke Density 325
  • Load Certificate
    • BS EN 124 – Class A15
  • UV Certificate
    • UV Weather ISO 4892-2 Xenan Arc 5000hrs
Temperature resistance
-50°C to +110°C
UV resistant
Yes
Cleaning
Using a stiff brush will normally be sufficient to remove everyday dirt and debris. For more stubborn dirt, wash with warm water and a mild detergent, or a pressure washer on a low-pressure setting can also be used

Applications

Perfect solution for platforms, walkways, flooring, ramps and covers for industrial or construction sites, chemical and shipping industries as well as offshore oil rigs.

Variants and Sizes

Code
Description
Thickness
Weight (kgs)
Colour
GR3939-25GNGRP Grating 996 x 996 x 25mm Sq Grit Top - Green12.5
GR3939-25GYGRP Grating 996 x 996 x 25mm Sq Grit Top - Grey12.5
GR3939-25YLGRP Grating 996 x 996 x 25mm Sq Grit Top - Yellow12.5
GR3960-25GNGRP Grating 1492 x 996 x 25mm Sq Grit Top - Green18
GR3960-25GYGRP Grating 1492 x 996 x 25mm Sq Grit Top - Grey18
GR3960-25YLGRP Grating 1492 x 996 x 25mm Sq Grit Top - Yellow18
GR3979-25GNGRP Grating 1985 x 996 x 25mm Sq Grip Top - Green25
GR3979-25GYGRP Grating 1985 x 996 x 25mm Sq Grip Top - Grey25
GR3979-25YLGRP Grating 1985 x 996 x 25mm Sq Grip Top - Yellow25
GR3910-25GNGRP Grating 3010 x 996 x 25mm Sq Grit Top - Green37
GR3910-25GYGRP Grating 3010 x 996 x 25mm Sq Grit Top - Grey37
GR3910-25YLGRP Grating 3010 x 996 x 25mm Sq Grit Top - Yellow37
GR4812-25GNGRP Grating 3660 x 1220 x 25mm Sq Grip Top - Green55
GR4812-25GYGRP Grating 3660 x 1220 x 25mm Sq Grip Top - Grey55
GR4812-25YLGRP Grating 3660 x 1220 x 25mm Sq Grip Top - Yellow55
GR3939-38GNGRP Grating 996 x 996 x 38mm Sq Grip Top - Green20
GR3939-38GYGRP Grating 996 x 996 x 38mm Sq Grip Top - Grey20
GR3939-38YLGRP Grating 996 x 996 x 38mm Sq Grip Top - Yellow20
GR3960-38GNGRP Grating 1492 x 996 x 38mm Sq Grip Top - Green29.25
GR3960-38GYGRP Grating 1492 x 996 x 38mm Sq Grip Top - Grey29.25
GR3960-38YLGRP Grating 1492 x 996 x 38mm Sq Grip Top - Yellow29.25
GR3979-38GNGRP Grating 1985 x 996 x 38mm Sq Grip Top - Green40
GR3979-38GYGRP Grating 1985 x 996 x 38mm Sq Grip Top - Grey40
GR3979-38YLGRP Grating 1985 x 996 x 38mm Sq Grip Top - Yellow40
GR3910-38GNGRP Grating 3010 x 996 x 38mm Sq Grip Top - Green58.5
GR3910-38GYGRP Grating 3010 x 996 x 38mm Sq Grip Top - Grey58.5
GR3910-38YLGRP Grating 3010 x 996 x 38mm Sq Grip Top - Yellow58.5
GR4812-38GNGRP Grating 3660 x 1220 x 38mm Sq Grip Top - Green87
GR4812-38GYGRP Grating 3660 x 1220 x 38mm Sq Grip Top - Grey87
GR4812-38YLGRP Grating 3660 x 1220 x 38mm Sq Grip Top - Yellow87
GR4812-50GNGRP Grating 3665 x 1225 x 50mm Sq Grip Top - Green115
GR4812-50GYGRP Grating 3665 x 1225 x 50mm Sq Grip Top - Grey115
GR4812-50YLGRP Grating 3665 x 1225 x 50mm Sq Grip Top - Yellow115
